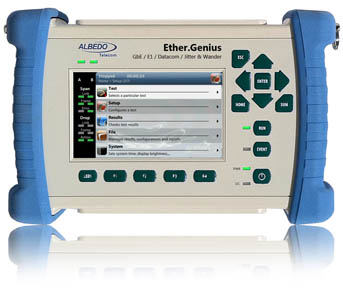

Ether.Genius all-in-one tester

ALBEDO Ether.Geniusis a multitechnology Ethernet tester that includes a Rubidium clock. It is ideal to install and measure advanced services based on GbE, SyncE, PTP, T1/E1, 1PPS, ToD, C37.94 and Datacom

Characteristic

Ports

Port A - B: 2 x SFP, 2 x RJ45 connectors
Port C: balanced RJ45 120  unbalanced BNC 75 
Port D: balanced RJ45 120  (through special adapter)
Datacom Port: DTE / DCE
VF Port: analogue voice frequency

Additonal

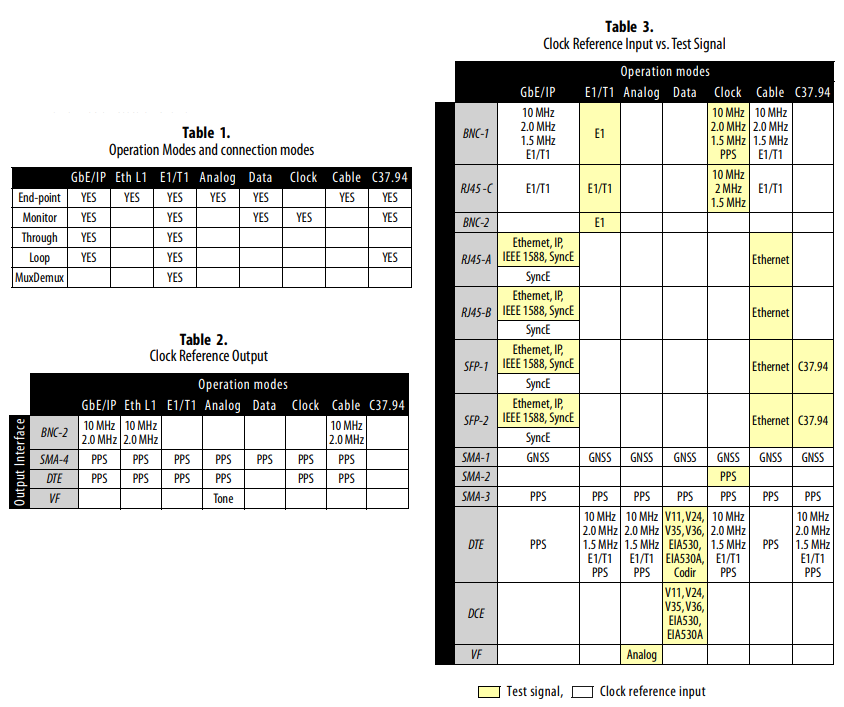

Specification

L1 Endpoint operation: Generation and analysis of PCS codes or any other pattern, framed or unframed required for BER testing at Layer 1.
Ethernet Endpoint operation: The equipment generates and receives Ethernet PCS codes and Ethernet frames (if required to do so) in port A. It receives PCS codes and Ethernet frames also in port B.
IP Endpoint operation: The equipment generates and receives IPv4 and IPv6 datagrams in port A. It also receives IPv4 and IPv6 datagrams in port B.
Through operation: The equipment does not generate traffic. Traffic received from port A is forwarded to port B. Traffic from port B is forwarded to port A.
E1 / T1 Endpoint: Emulation of a E1 / T1 network termination point including both transmission and reception.
E1 / T1 Monitor: Analysis of E1 / T1 inputs without generating any test signal.
E1 / T1 Pass-through: Transfers E1 or T1 frames between ports in both transmission directions and enables test signal alteration.
E1 / T1 MUX / DEMUX: Enables E1 / T1 and data communications at the same time to test TDM multiplexers and demultiplexers.
Datacom Endpoint: Emulation of a data communications DTE or DCE.
Datacom Monitor: Transparent, passive monitoring of a DTE to DCE connection.
C37.94 Endpoint: Emulation of a IEEE C37.94 network termination point including both transmission and reception.
C37.94 Monitor: Analysis of IEEE C37.94 inputs without generating any test signal.
C37.94 Pass-through: Transfers IEEE C37.94 frames between ports in both transmission directions and enables test signal alteration.
G.703 E0 Endpoint: Generation and analysis over G.703 co-directional, contra-directional and centralized interfaces.
Voice Frequency: Generation and analysis of analog signals in the telephone band (300 ~ 3400 Hz).
Clock Monitor: Monitors frequency and time clock signals and runs synchronization tests on them.
