OPTEQ Instruments

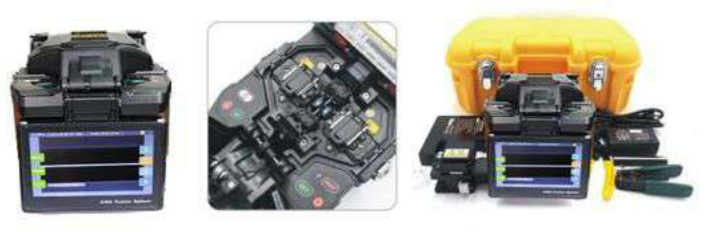

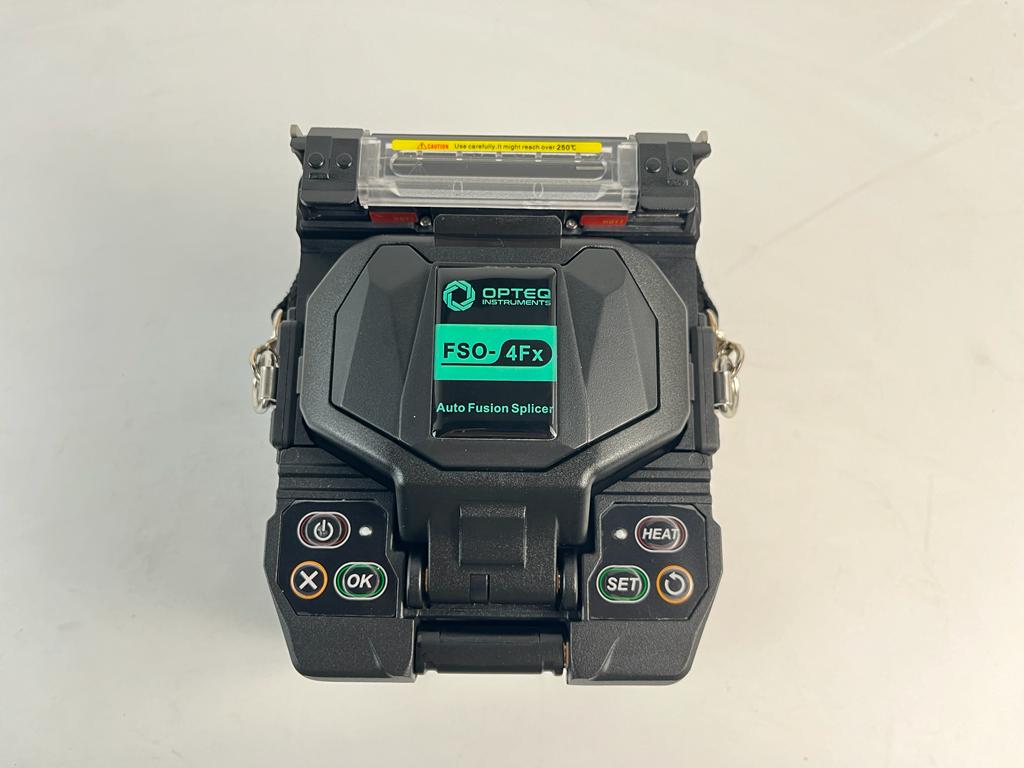

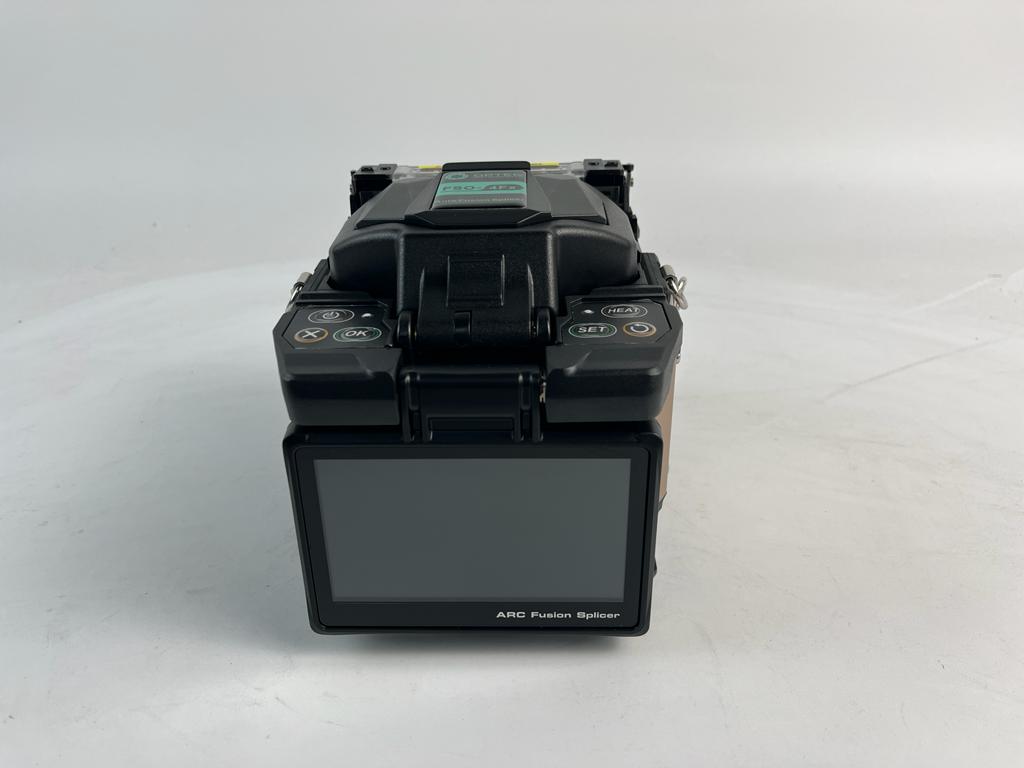

FSO 4Fx

Splicing Machine

DACAS-Digital Analysis Core Alignment Systems
German CNC Technique and Integrated Fiber-Adjust Frame, which Makes Performance Much Stable
Fiber Type Identification Function
V-Groove Precise Alignment, High Quality and Low Loss
Auto-Splicing Mode, Using Friendly Design
4.3″ High Resolution Color LCD Touch Screen, with Anti-Reflective Coating for Excellent Visibility
Dust-Proof, Water-Proof, High-Temperature Resistance, Adapting to Various Altitude and Harsh Environment
3 High-Power White LEDs and Illuminated Keypads Simplifies Your Work at Night
Detachable Multifunction Fixture, Suitable for Various Fiber Type
Built-in Japanese Components and Korean Chipset

Model : FSO-4Fx
Dimension: 130W155L125H (excluding rubber bumper)
Number of Fiber: Single
Applicable Fibers: SM(ITU-T G 652& G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
Compatible Fiber/Cable: 0.25 ~ 3.0mm/Indoor Cable
Cleaved Length: Diameter: 0.125 ~ 1 mm/Cleave Length: 8~16mm
Cladding Diameter: 80 ~ 150 µm
Splicing Mode: Pre-set 41 splicing modes, max 100 modes
Heating Mode: Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss: SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05 dB/ G.657: 0.03dB (ITU-T Standard)
Return Loss: ≥ 60dB
Lighting: 3 White LEDs
Splicing Time: Quick mode: 6s
Estimated Splice Loss: Available
Heating Sleeve Length: 20 ~ 60 mm

Heating Time : Quick heating time: 13s, typical heating time: 30s
Results Storage: 20000 latest records & 200 images
Tension Test: 1.96 ~ 2.25N
Operating Condition : Operating Altitude: 0 ~ 5000m above sea level, 0 ~ 95% relative humidity, -10 ~ 50 ℃, Max Wind 15m/s
Storage Condition: 0 ~ 95% relative humidity, -40 ~ 80℃
Display: 90° bi-directional view, 4.3" Color High Resolution Display
Fiber View & Magnification : X, Y, X/Y, XY: 380X Magnification
Power Supply: AC Input 100 ~ 240V, DC Input 12 ~ 15V
No. of Splice/Heating: Typical 200 times (Splice + Heat)
Operating Methods: Button/Touch Screen
Automatic Calibration: Automatic arc calibration by air pressure and temperature
Electrode Life: 5000 arcs
Terminal: Mini USB 2.0
