OPTEQ Instruments

View 6L

Splicing Machine

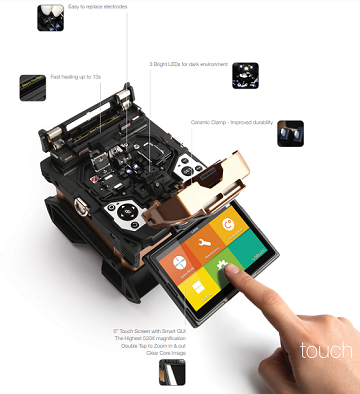

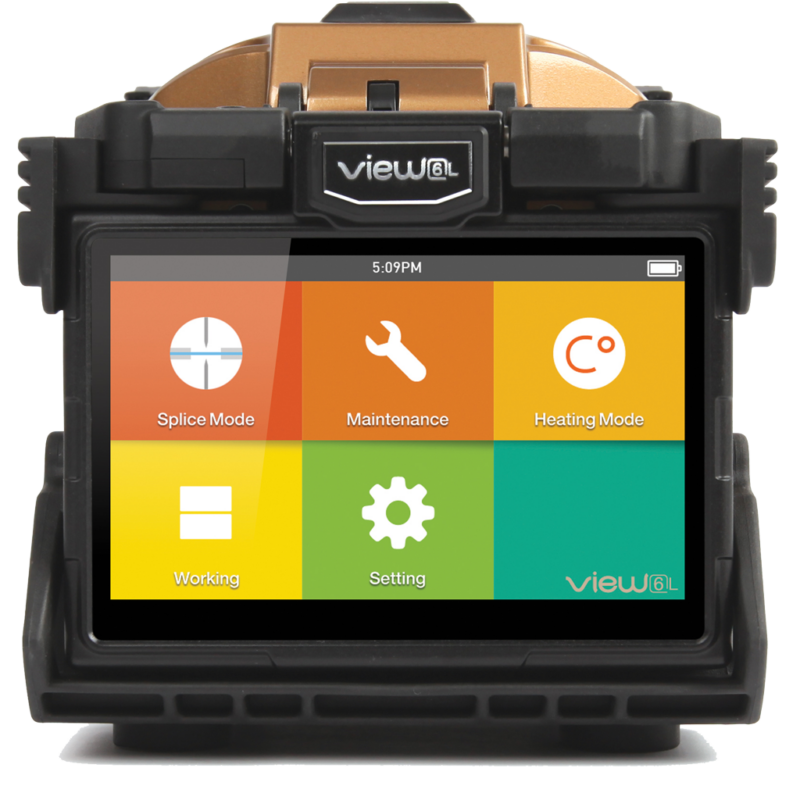

The View 6L core-alignment fusion splicer boasts a high fiber image magnification rate, making it a specialized tool primarily available to major telecommunications operators. It features a 5-inch high-resolution color LCD touchscreen, enhanced by a user-friendly graphical user interface (GUI), which displays large, clear fiber images.

Characteristic

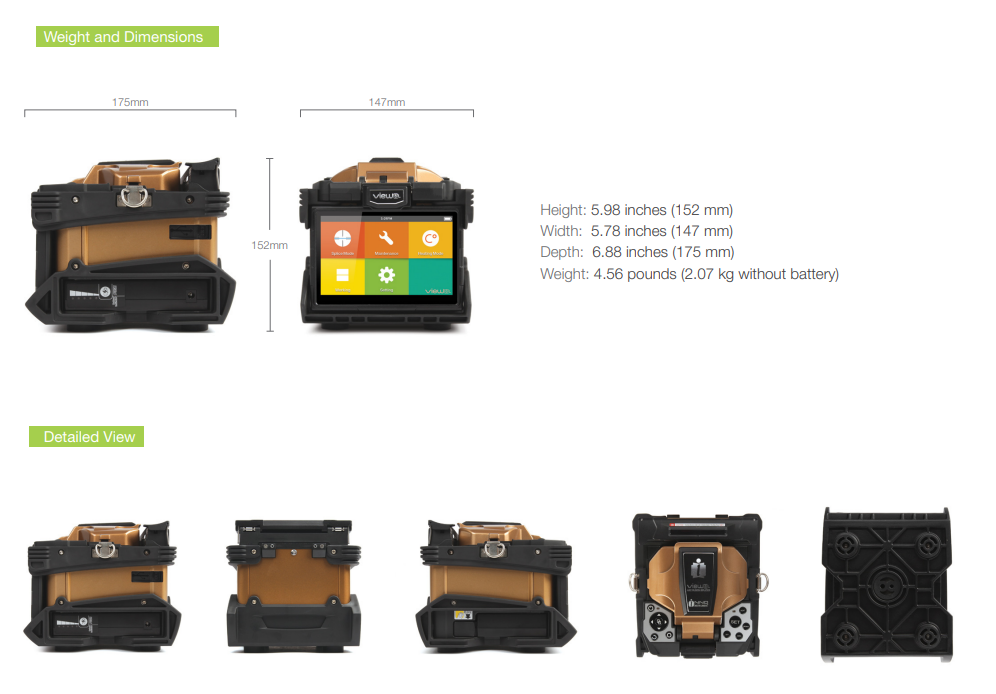

Height: 5.98 inches (152 mm)
Width: 5.78 inches (147 mm)
Depth: 6.88 inches (175 mm)
Weight: 4.56 pounds (2.07 kg without battery)

Additonal

Fusion Splicer : View 6L
High Precision Cleaver : V7
Carrying Case : NBX-3

AC Adapter : JS-180300
Cooling Tray: CG-22
Electrode: E-50

Battery Pack : LBT-40
Power Cable : ACC-25
USB Cable: USB-5P

Cigarette Lighter Cable (Optional): CJ-11
Fiber Holder : VFH-10 (equipped)

Specification

Model: View 6L
Dimension : 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
Weight: 2.43KG (with battery) / 2.07KG (without battery)
Number of Fiber: Single
Applicable Fibers: SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable: 0.25 ~ 0.9 mm
Cleaved Length: Diameter: 0.125 ~ 1 mm / Cleave Length 8 ~ 16 mm
Cladding Diameter: 80~150 μm
Splicing Mode: Max 128 modes
Heating Mode: Max 32 modes
Typical Splice Loss: SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)
Return Loss: >>60dB
Lighting : 3 White LEDs
Automatic Calibration : Automatic arc calibration by air pressure and temperature

Splicing Time : Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss: Available
Protection Sleeve Length: 20~60 mm
Heating Time: FP-03 typical heating time: 13 sec
Results Storage: The last 10,000 results
Tension Test: 1.96~2.25N
Operating Condition: Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition: 0~95% relative humidity, -40~80°C
Display: 90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification: X, Y, XY, X/Y : 520X Magnification
Power Supply: AC Input 100-240V, DC Input 9-14V
No. of Splice / Heating with Battery : 4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
Operating Methods: Button / Touch screen
Electrode Life : 5,500 arcs, can be extended by using an electrode grinder
Terminal: USB2.0 / MINI USB
