Splicing Machine

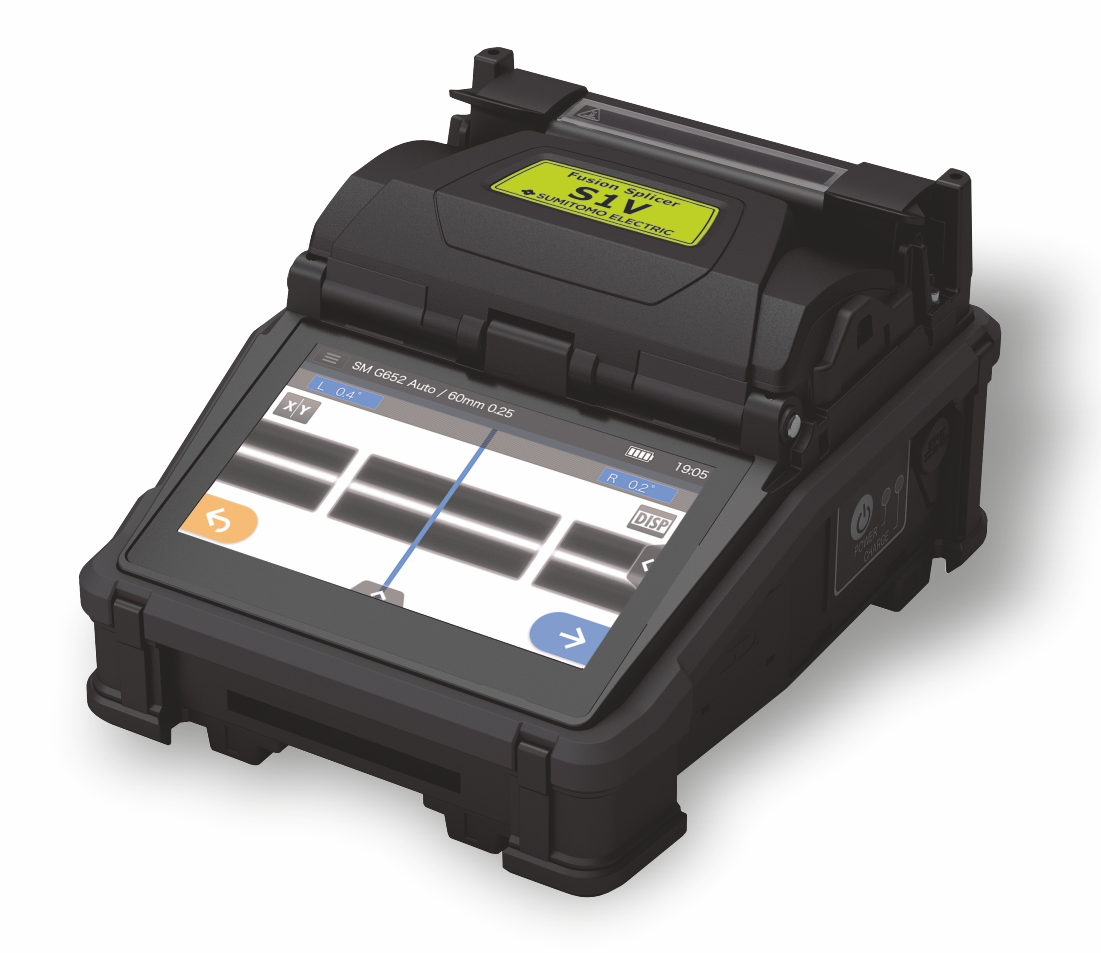

Sumitomo S1V splicing machine is specially designed for FTTH connections, making it an ideal choice for service providers and technicians involved in expanding broadband access to homes. S1V is the world's smallest, user-friendly and most light weight splicing machine in India. S1V- Compact, Smart & Tough. It means easy to carry, easier, smart technology and easy opration under worst conditions.
Accessories for Splicers
| Part Name | Part No. | Qty. |
|---|---|---|
| AC adapter | ADC-15 | 1 pc |
| AC power cord | PC-AC -2P | 1 pc |
| Battery pack | BU-17 | 1 pc |
| Quick reference guide | - | 1 pc |

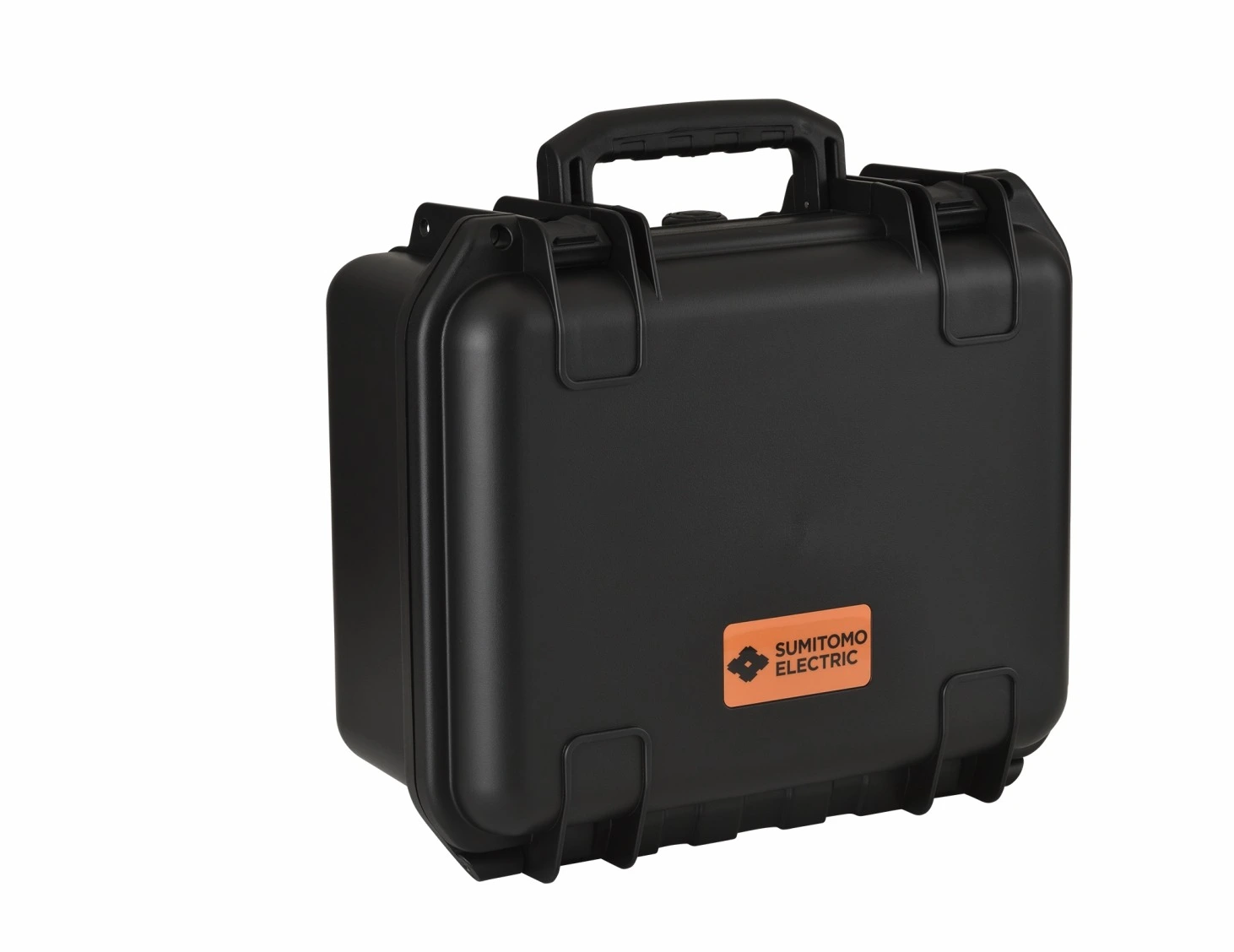

| Carrying case | CC-18 | 1 pc |

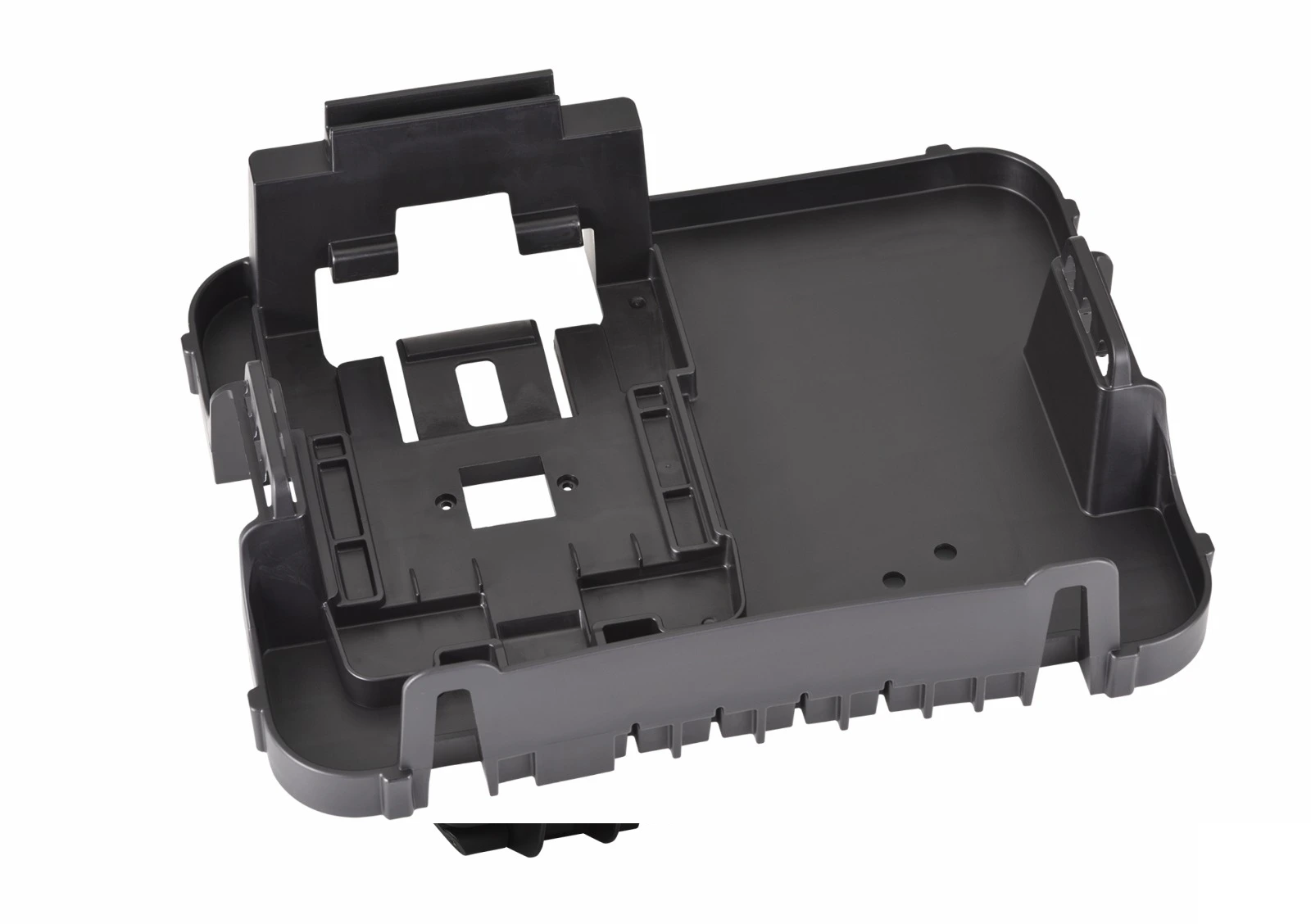

| Working tray | WT-18 | 1 pc |
| Item | S1V |
|---|---|
| Optical Fiber Requirement | |
| Material | Silica glass |
| Fiber count / Profile types | Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657) |
| Fiber diameter | Cladding diameter: 125 µm, Coating diameter: 250 – 1,000 µm |
| Cleave length | 5 to 16mm for single fiber |
| Standard Performance | |
| Splicing Loss (Typical) | SMF: 0.03dB, MMF: 0.01dB, DSF: 0.05dB, NZDSF: 0.05dB |
| Return loss (typical) | 60dB or greater |
| Splice time (typical) | 6sec (SM G652 Quick Mode) |
| Heating time (typical) | 17sec (FPS-61-2.6 sleeve, S60mm 0.25 Mode) |
| Splice & Heat cycles per battery full charge* | Approx. 250 (BU-17) |
| Fiber view & magnification | 2 CMOS cameras observation, 140X (zoom 370X) for X and Y axis view |
| Proof test | 1.96 ~ 2.09N |
| Applicable protection sleeve | 60mm, 40mm & Sumitomo Nano sleeves |
| Programs | |
| Splice programs | Max. 300, 16 are pre-optimized, 284 editable by user |
| Heating programs | Max. 100, 23 are pre-optimized, 77 editable by user |
| Functions | |
| Splice image capture / Splice data storage | 200 images / 10,000 splice data (internal memory only). 50,200 / 20,000 (With 16GB SD card) |
| Auto-start | Splice/Heating |
| Multi clamp | Provided, 250 µm, 900 µm tight & loose buffer fiber, 2 & 3mm jacket cord and rectangular drop cable |
| Heater clamp for splice on connector | 3.5mm round drop cable Provided |
| Automatic arc calibration | Automatically compensates for environmental condition changes |
| Onboard user training video Size | Provided |
| Size / Weight | |
| Dimensions | 126(W) x 154(D) x 83(H) mm (without protrusion) |
| Weight | 0.9kg (without Battery), 1.2kg (with Battery BU-17) |
| Monitor | 4.3" color LCD display |
| Terminals | |
| USB port | USB 2.0 (mini-B type) |
| Storage media | SD / SDHC memory card Max 32GB |
| Power supply | |
| AC input | AC 100 – 240V, 50/60Hz (ADC-15) |
| DC input | DC 10 – 15V |
| Battery pack | Li-Ion 10.8V, 4,560mAh (BU-17) |
| Operating condition | |
| Altitude | 0 – 5,000m |
| Temperature | -10 ~ +50°C |
| Humidity | 0 – 95%RH (non-condensing) |
| Wind velocity | up to 15m/sec |
