OPTEQ Instruments

M9

Splicing Machine

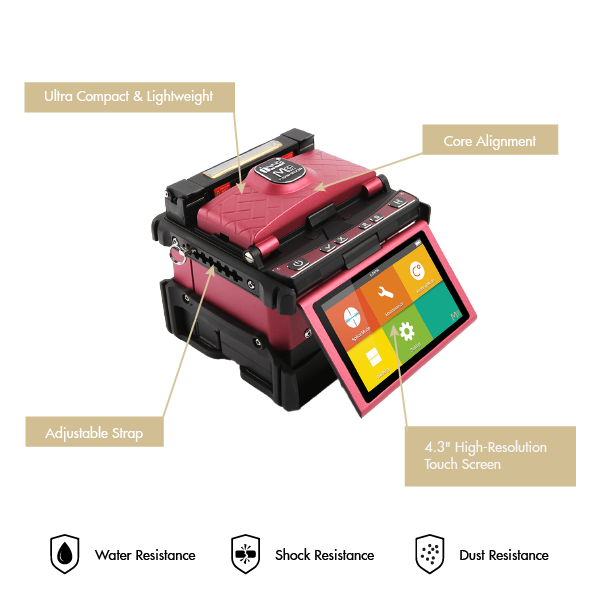

M9, a core-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products.

Characteristic

Applications

FTTH & Core Systems
Lightweight Engineer\'s Gear
Installation & Maintenance
All FTTx Fibers
Small Fiber Count Projects
Roof and Pole Jobs

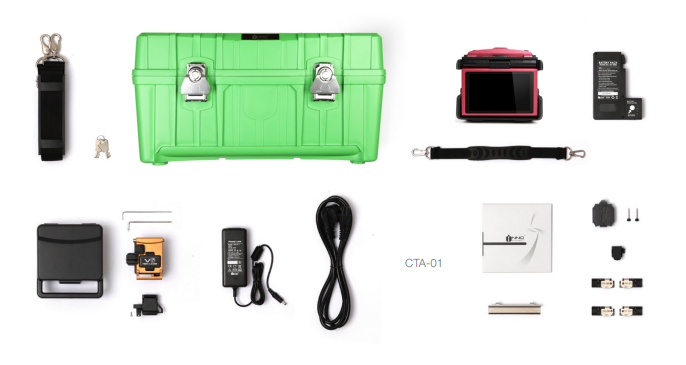

Additonal

Carrying Case : ICC-50
USB Cable : CTA-01
Fiber Holder : FH-40

Power Cable: ACC-25
AC Adaptor: JS-1618
Cooling Tray: CG-22

Electrodes: E-50
Battery Pack: LBT-3000
SOC Heater Cover : HTN-SOC

Simple Optical Fiber Collector: SC-V7-01
High Precision Cleaver: V7

Specification

Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways

Fusion Splicer

Splicing Technology: Core Alignment Splicing Method
Splicing Time: 7 seconds (quick mode) / 9 seconds (SM auto mode)
Heating Time: 13 seconds (45mm, slim 60mm), 15 seconds (60mm)
Typical Loss: 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)

Dimensions

Size (HWD): H: 136mm W: 144mm D: 125mm
Weight: 1.67kg (including battery) / 1.43kg (without battery)
