Maxtester 715D

OTDR

Fully featured, entry-level, dedicated OTDR with tablet-inspired design perfect for frontline singlemode fiber installers.

Entry-level solution designed for all your testing needs

The MaxTester 715D (MAX-715D) is purpose-built for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a central office environment or at FTTA/DAS network installations).

Characteristic

Higher Dynamic range up to 32/30/30 dB
3-year warranty
In line power checker: Power range -60 to 23 ( dBM )

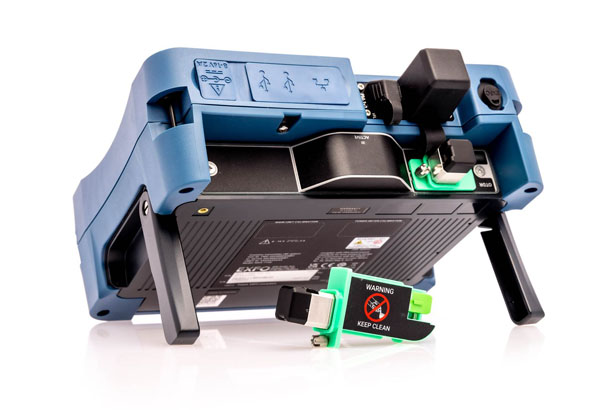

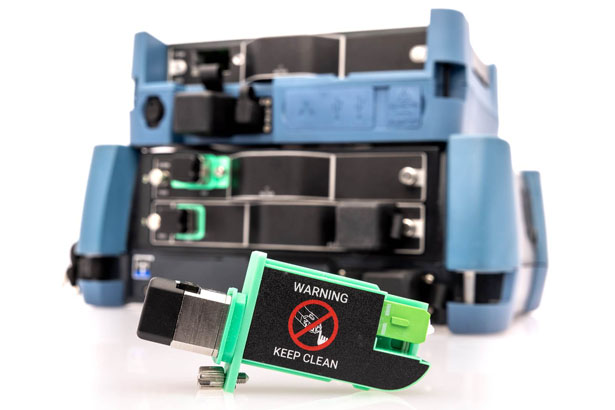

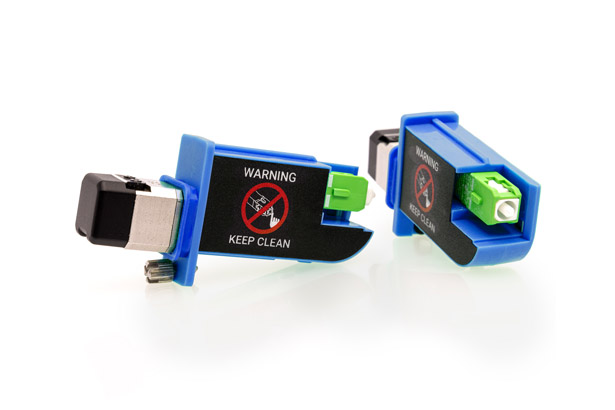

Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
Integrated hooks for hand straps improving portability
Rugged, handy, lightweight, tablet-inspired design built for outside plant
7-inch, outdoor-enhanced touchscreen—the biggest in the handheld industry
Dead zones: EDZ 0.9 m, ADZ 3.6 m
iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
12-hour autonomy

Additonal

Specification

FTTx last-mile installation and troubleshooting
Short access-network testing
FTTA fiber-DAS installations
CATV/HFC network testing
