Characteristic 1: &nbsp;Heating Time - 18sec&nbsp;with 60mm sleeve
Characteristic 2: &nbsp;Full Touch Screen
Characteristic 3: &nbsp;600 cycles (Splicing &amp; Heating) with Two Batteries
Characteristic 4: &nbsp;SOC Compatible
Characteristic 5: &nbsp;Universial Holder 250㎛ / 900㎛ / 2~3&Phi; / Indoor
Characteristic 6: &nbsp;The Fast Splicing Time 7sec with SM fiber

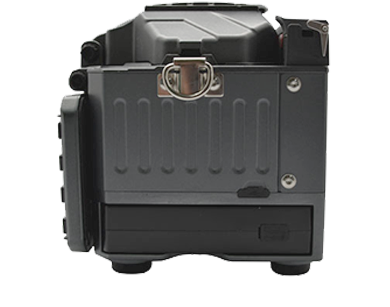

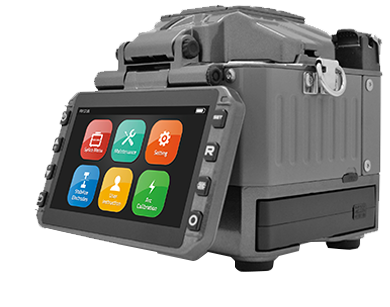

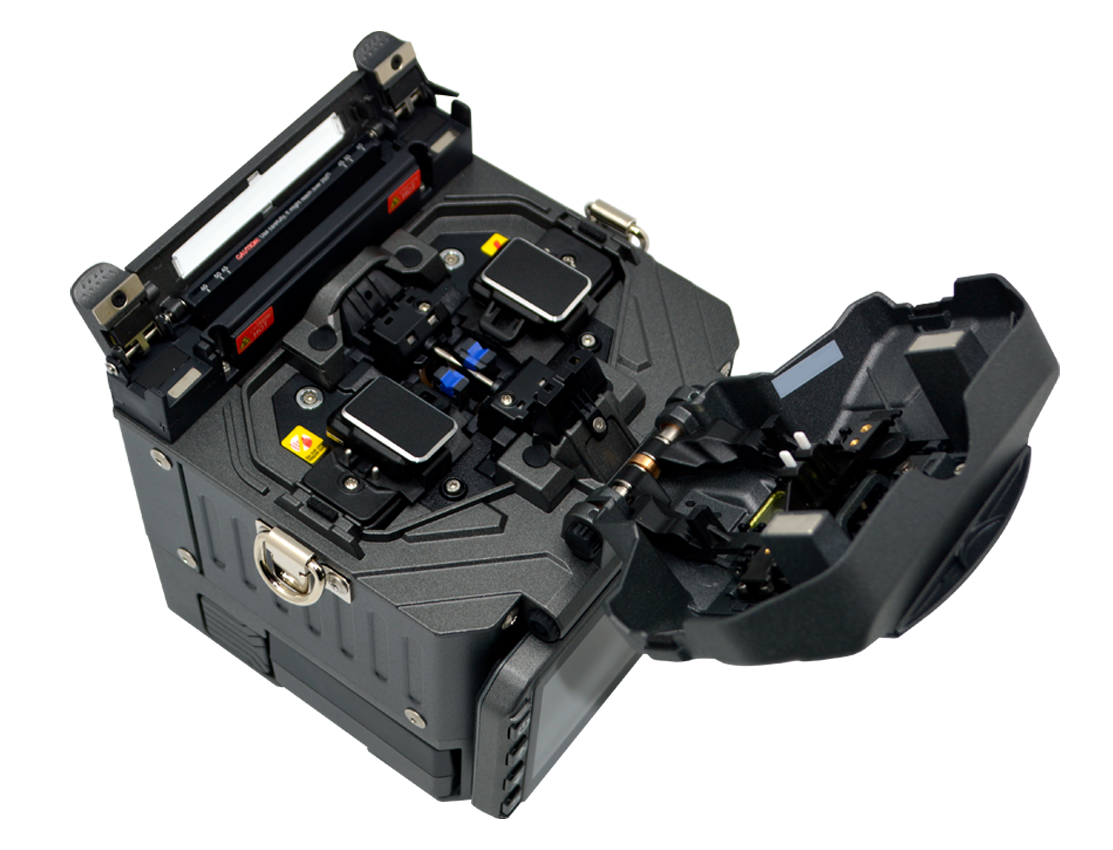

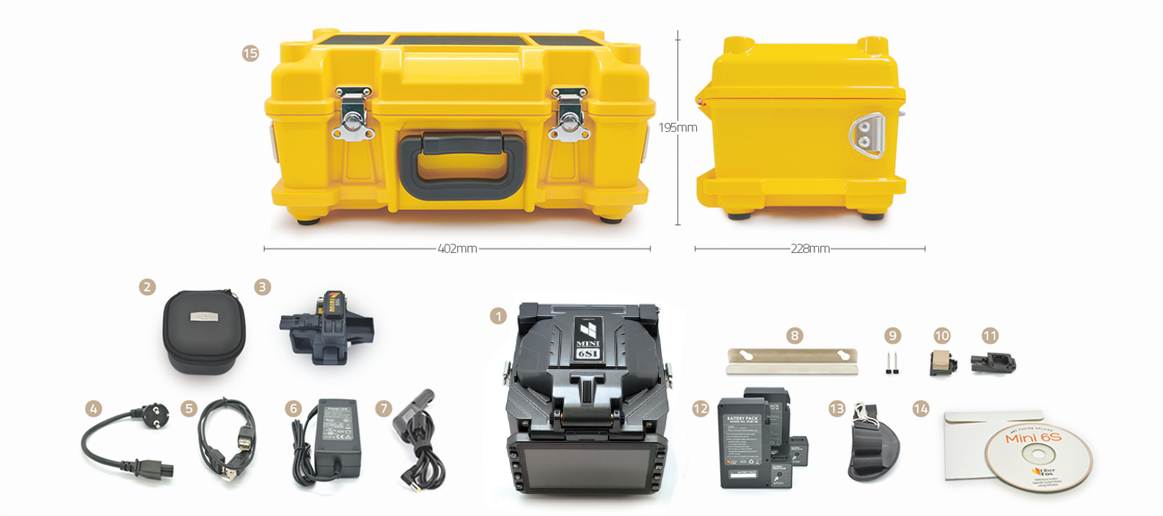

Mini 6Si

Splicing Machine

01 Performance
Perfect performance under any environmental conditions

Splicing Method: Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking System)
Splicing Loss: SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB)
Return Loss: >>60DB
Splice Time: Quick: 7 Sec. / SM Auto: 10 Sec.
Electrode Lifespan: >>3,500 arcs
Applicable Fiber: SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Cleaved Length: >250Um Coating : 10~16mm / >250Um Coating : 16mm
Coating Diameter: 100-3,000um
Cladding Diameter: 80-150um
Heating Programs: 42 modes (Pre-set: 10 / User set-up: 32)
Heating Time: Ave. 18s
Applicable Sleeve: 20 ~ 60mm
Connectivity (link to PC): USB (5Pin Mini-B)

Data Storage: Splice record : 5,000 / Image : 2,000
Splice Programs: 166 modes (Pre-set: 38 / User set-up: 128)
Battery: 300 cycles (Splicing & Heating)
Power Supply: AC 100-240V input or DC 9~15V
Monitor: Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)
Fiber detecting: Dual CCD camera with LED emitting system
Magnification: 200 for X and Y; 320 for X or Y
Fiber Display: X/Y or XY, single X.Y
Weight: 1.5kg (with battery : 1.9kg)
Size: 122 x 124 x 138mm (L x W x H)
Wind Protection: The max wind speed 15m/s
Operating Environment: Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity
Storage Condition: Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test: 1.96~2.25N (standard)
