A870

A870

OTDR

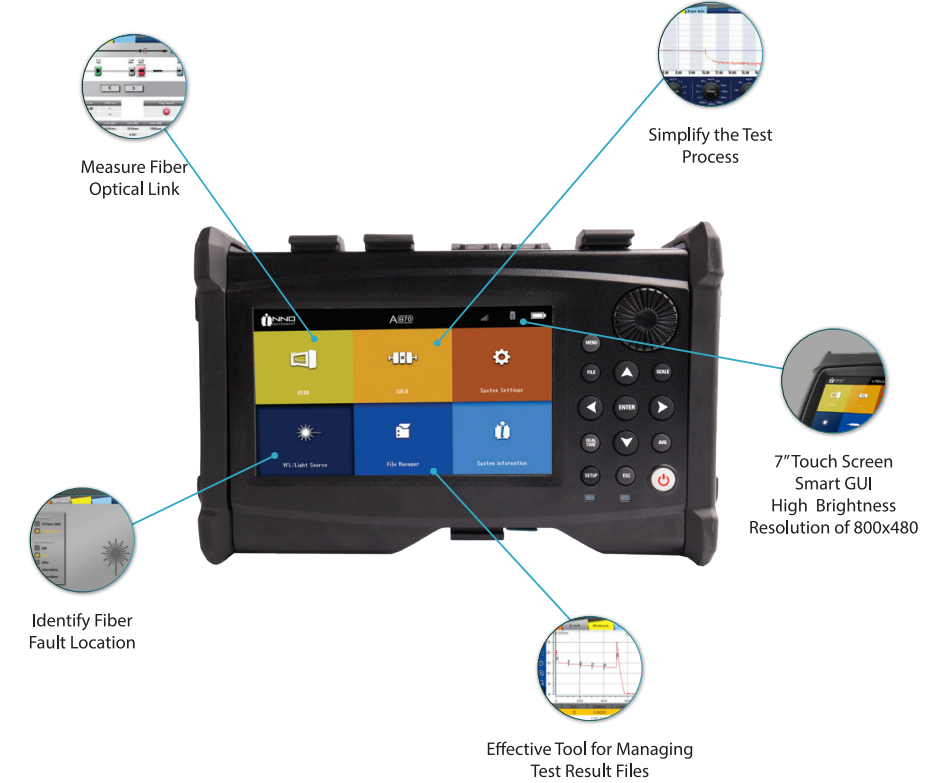

    A870 optical time domain reflectometer (OTDR) shortens the time for installation, debugging and fiber spacing maintenance through adopting high performance hardware and convenient software.

    The main function of A870 is for fiber fault diagnosis, especially aiming at FTTH applications. Besides basic OTDR functions, A870 also has a built-in light source function for optical fiber identification. In addition, A870 also has a visual light source option, through which the visual inspection of fiber bends and fiber ruptures in dead zone of OTDR can be carried out.

Download Catalogue

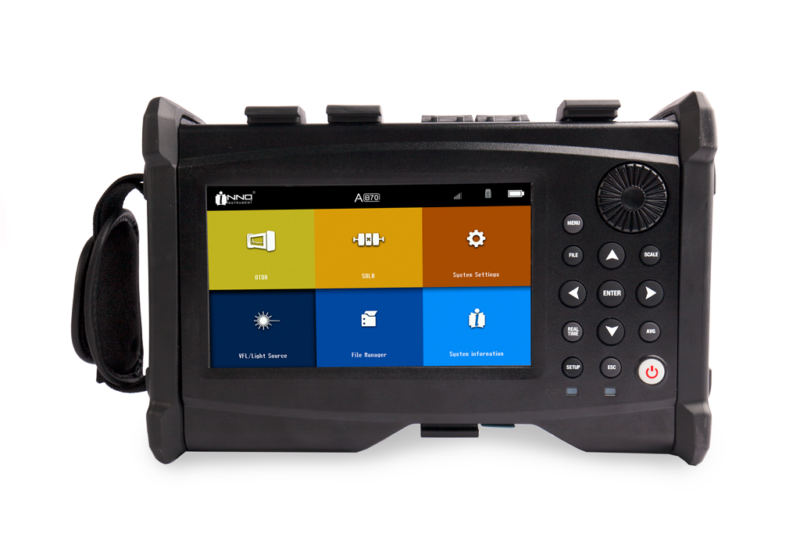

Main Image

Characteristic

  • MODEL OTDR: A870
  • OPTICAL CONFIGURATION SMF1: 1310/1550nm
  • BASIC SOFTWARE OTDR: OTDR application only SOLA: SOLA application only OS: OTDR & SOLA application
  • FIBER CONNECTOR CNT1: FC/APC CNT2: SC/APC CNT3: LC/APC CNT4: FC/UPC CNT5: SC/UPC CNT6: LC/UPC
  • LIGHT SOURCELS0: Without VFL & Light Source LS1: With VFL LS2: With Light Source LS3: With VFL & Light Source
  • MICROSCOPE MS0: Without Microscope MS1: With Microscope - V20

Additonal

  • OTDR: A870
  • Power Cable / AC Adapter: ACC-25 / JS-180300
  • Shoulder Strap: Soft case
  • Carrying case: ST-01
  • Calibration Certificate
  • 1.5 Screw Driver

Specification

  • Display: 7 inches, High Brightness TFT LCD, resolution of 800×480
  • Distance Unit: m / km / mile / ft
  • Distance Range:    Single mode 0.1, 0.3, 0.5, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 260, 320km
  • Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1µs, 2.5µs, 5µs, 10µs, 20µs
  • Dynamic Range: 1310 / 36dB, 1550 / 35dB
  • Event Dead Zone    0.8m
  • Attenuation Dead Zone: 3m
  • Distance Uncertainty: ± (1.0m + distance × 2.5 × 10⁻⁵ + sampling resolution)
  • Linearity: ± 0.05dB/dB
  • Loss Accuracy: ± 0.2dB
  • Sampling Points: 150000
  • Sampling Resolution: 0.04m ~ 10.24m
  • IOR Setting: 1.000000~2.000000
  • Operation Mode:    PressKey and TouchScreen
  • Battery Capacity: 5800mAh
  • Operation Temperature: USB 2.0
  • File Format: SOR (Telcordia), SOLA, PDF, BMP, JPG, GDM
  • External Interface: USB2.0, RJ45 (100Mbps Ethernet), TF
  • Compatible Connectors: FC / SC / LC
  • Power Supply: AC 100-240V 50-60HZ DC 19V 3.42A
  • Output: 20mW
  • VFL Module: Operating wavelength: 650±10nm
  • Universal interface: 2.5mm
  • Dimension: 275 × 178 × 68 mm (including rubber bumper)
  • Weight:    1.78kg (with battery)
