The VIEW 6C Arc Fusion Splicer from INNO Instrument features a product design and manufacturing technology focused on enhancing the splicing experience. This technology effectively reduces splicing and heating times. Its advanced estimation method and alignment technique are designed to improve the accuracy of splice loss estimation. The product combines a simple yet contemporary design with a sophisticated internal structure and a sturdy protective cover, making it adaptable to various operating environments. Additionally, the splicer includes a dynamic operation interface and an automatic splice mode, adding to its user convenience.

Characteristic

Active V-Groove Clad Alignment Splicing Method
The highest magnification and resolution

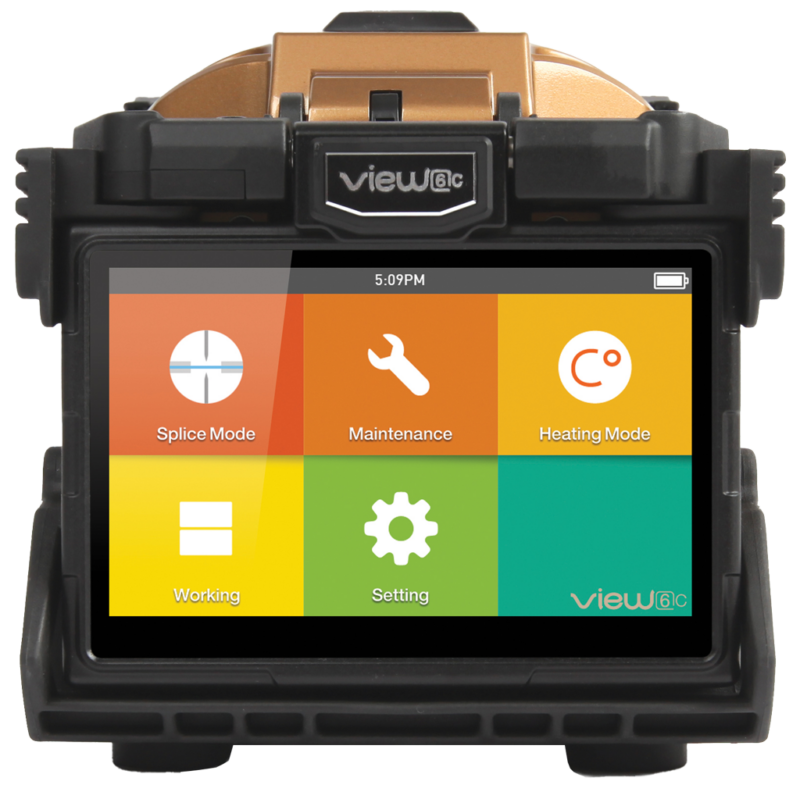

5″ Color LCD touch screen
Double tapping (zoom in & out)
Fast Heating Time
Short cleave length splicing capability
Detachable SOC holder and heating oven
3 bright LEDs for dark environment

Additonal

Fusion Splicer : View 6C
High Precision Cleaver : V7
Fiber Holder: VFH-40S (equipped)/FH-SOC-30

SOC Heater Cover : HT-SOC
AC Adapter: JS-180300
Cooling Tray : CG-22

Electrode: E-50
Manual CD: CD
Battery Pack: LBT-52

Power Cable: ACC-25
Cigraette Lighter Cable : CJ-11
Carrying Case : NBX-35

Specification

Model: View 6C

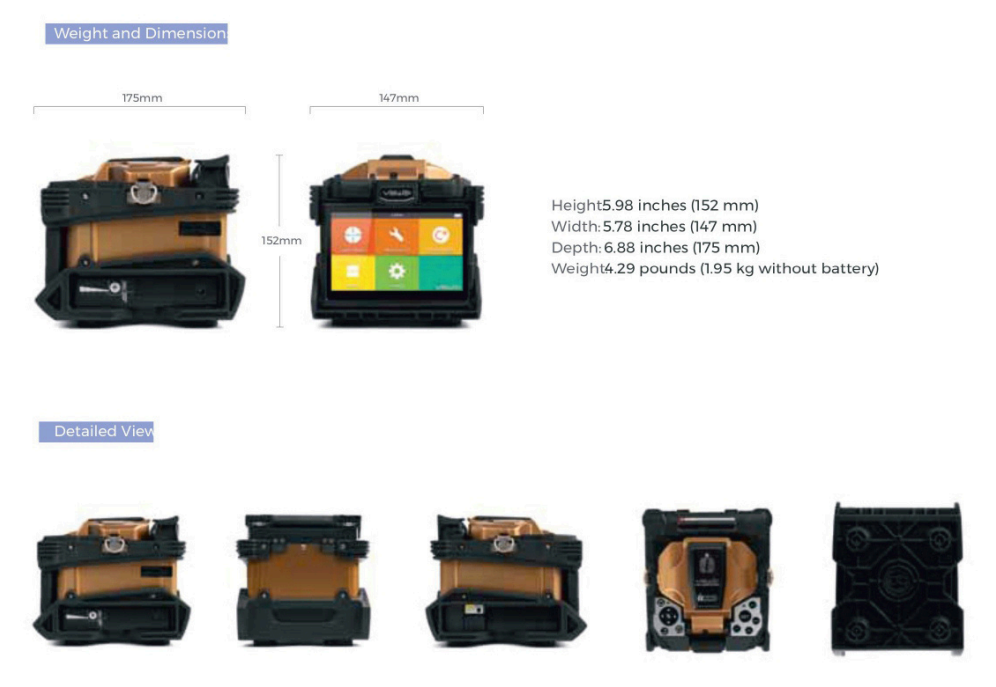

Dimension: 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
Weight: 2.31KG (with battery) / 1.95KG (without battery)
Number of Fiber: Single
Applicable Fibers: SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable: 0.25~3.0 mm / Indoor Cable
Cleaved Length: Diameter: 0.125 ~ 1 mm / Cleave Length 5 ~ 16 mm
Cladding Diameter: 80~150 µm
Splicing Mode: Max 128 modes
Heating Mode: Max 32 modes
Typical Splice Loss: SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard)
Return Loss: >>60dB
Lighting: 3 White LEDs
Splicing Time: Quick mode: 7 sec / Auto mode: 9 sec

Estimated Splice Loss: Available
Protection Sleeve Length: 20~60 mm
Heating Time: FP-03 typical heating time: 13 sec
Results Storage: The last 10000 results with images
Tension Test: 1.96~2.25N
Operating Condition: Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition: 0~95% relative humidity, -40~80°C
Display: 90° bi-directional view, 5.0" Color High Resolution Display
Fiber View & Magnification: X, Y, X/Y, X/Y : 520X Magnification
Power Supply: AC Input 100-240V, DC Input 9-14V
No. of Splice / Heating with Battery: 5200mAh Battery Capacity, Typical 250 times (Splice+Heat)
Operating Methods: Button / Touch screen
Automatic Calibration: Automatic arc calibration by air pressure and temperature
Electrode Life: 5500 arcs, can be extended by using an electrode grinder
Terminal : USB2.0 / MINI USB
