48F, 96F, (armored / unarmored) (2 Tube / 4 Tube / 6 Tube)

Optical Fiber Cable

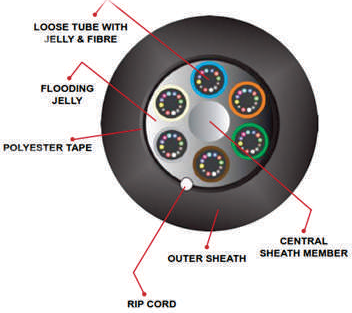

    Cable Construction

    • 288 low water peak single mode fibres in compliance with ITU-T-G.652D
    • Metallic / Non-metallic element used as central strength member for Tensile Strength
    • Loose buffer tubes jelly filled
    • Loose buffer tubes S-Z Stranded
    • Cable core filled with jelly
    • S-Z core wrapped with polyester tape
    • UV stabilized PE outer sheath, black

Characteristic

Special Features

  • Flexible buffer tubes provide easy fibre routing inside closure
  • Lighter weight cable for fast and easy installation

Additonal

Variants*

  • Cable can be supplied with single mode (ITU-T-G652, G655, and G657) & Multimode (50μm & 62.5μm)
  • Outer Jacket can be of PVC, LSZH, and HDPE
  • Strength member can be Steel or FRP
  • These are general characteristics; customized designs are available as per requirements

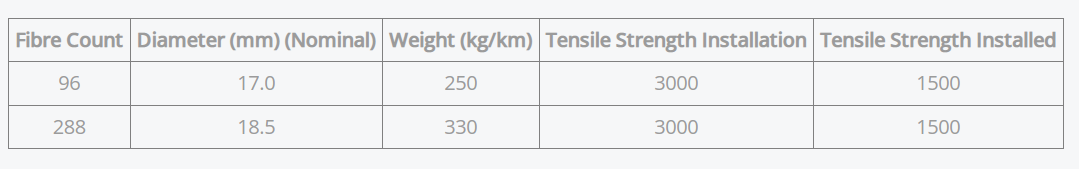

Specification
