88S

Splicing Machine

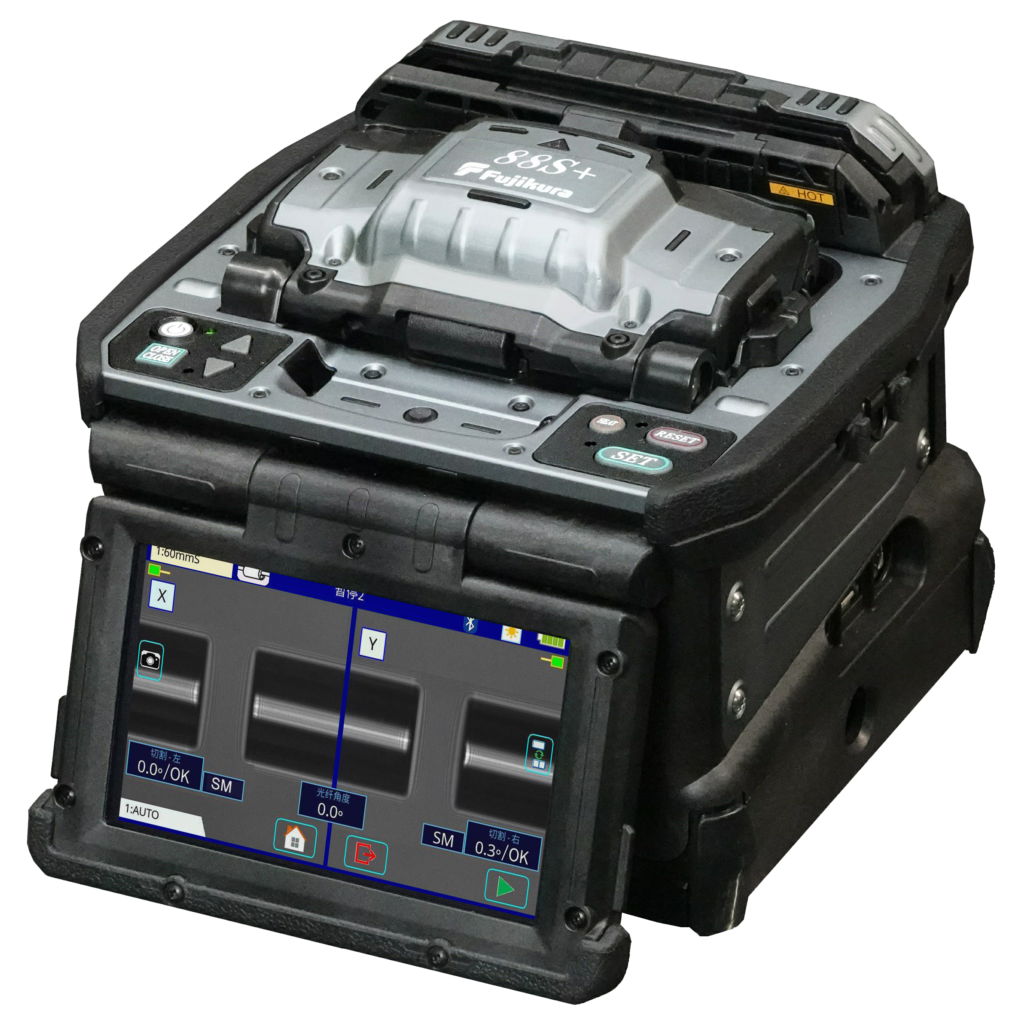

Fujikura 88S+ is an advanced core alignment fusion splicer that is designed to streamline the splicing process for greater productivity. Equipped with a 5-inch touchscreen display, the 88S is user-friendly and easy to operate. Its configurable automation features allow for customization of the machine’s operation to best suit specific splicing techniques and processes.

Characteristic

Typical splice time of 7 seconds and tube heating time of 9 seconds
20,000 splice result storage with image capturing for better record keeping
Electrode life of 5000 splices, reducing the need for frequent replacements
Battery pack capacity that provides 300 splice and heat cycles per charge
5-inch LCD monitor with touch screen for easy operation
Advanced image processing technology for enhanced precision in splicing
Fiber discrimination function that automatically selects the appropriate splicing program based on fiber type
Active Blade management technology that monitors the cleaver blade life and automatically rotates to a new position for improved cleaving performance
Bluetooth connectivity for wireless communication with Cleaver and other devices.
Automated unit protection & tube heater with a fast and automatic system.
