48S

Splicing Machine

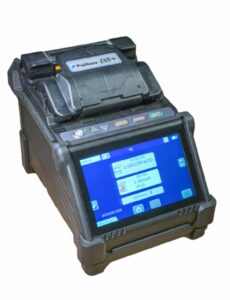

    Fujikura 48S+ is a high-end fusion splicer designed for FTTx, data center/LAN, and access networks. It has advanced features, including active V-Groove alignment, fast splicing time, and compatibility with various fiber types. Fujikura 48S+ is a single Fiber Splicing Machine. It is a Core alignment Splicing Machine which gives excellent and accurate results. It has 100 Splice modes and 30 heating modes. It also has the capability to store 10000 splice results. Display: 4.9 inch TFT with Touch screen fully loaded with user friendly.

Characteristic

  • Core-to-core alignment technology
  • Fast splicing time of just 6 seconds
  • Compatible with a range of fiber types, including SMF, MMF, DSF, and NZDSF
  • Applicable for use with fibers with a cladding diameter of 125μm and up to 3mm sheath diameter with sheath clamp
  • Splice result in storage of up to 10,000 splices
  • Short cleave length splicing of 5-16mm
  • Compact and lightweight design
  • 5-inch color LCD touchscreen display
  • Durable construction and resistance to dust, shock, and rain

Additonal
