48F, 96F, (armored / unarmored) (2 Tube / 4 Tube / 6 Tube)

48F, 96F, (armored / unarmored) (2 Tube / 4 Tube / 6 Tube)

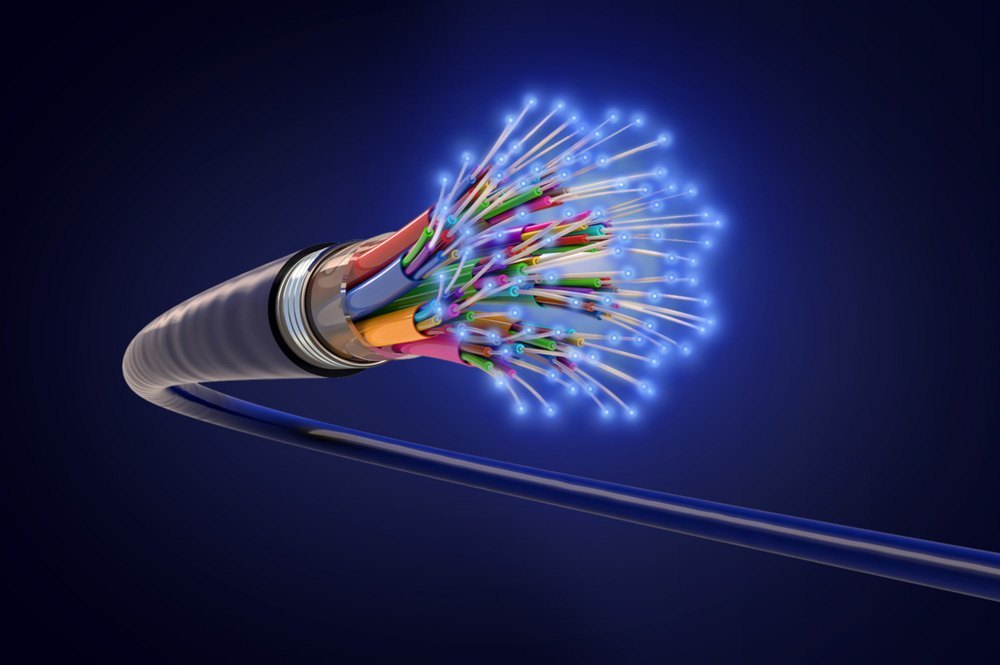

Optical Fiber Cable

    Cable Construction

    • Up to 144 low water peak single mode fibres in compliance with ITU-T-G.652D
    • Metallic / Non metallic element used as central strength Member for Tensile Strength Loose buffer tubes jelly filled
    • Loose buffer tubes S-Z Stranded Cable core filled with jelly S-Z core wrapped with polyester tape
    • UV stabilized PE outer sheath, black
Download Catalogue
Main Image
Image 1

Characteristic

Mechanical Characteristics

  • Temperature Range:  (IEC 60794-1-2-F1)
  • Laying & Installation : -10°C to +50°C
  • Operation:  -20°C to +60°C

Cable Bending Radius (IEC 60794-1-2-E11A)

  • During Installation : 20D, D=Cable Diameter
  • Installed : 15D, D=Cable Diameter
  • Repeated Bending : 30 Cycle, r=20D, 5 Kg,Load, D=Cable Diameter (IEC 60794-1-2-E6)

Additonal

Applicatons Inside

  • Duct, Pulled or Blown For CATV applicaton, aerial applicaton along with messenger wire

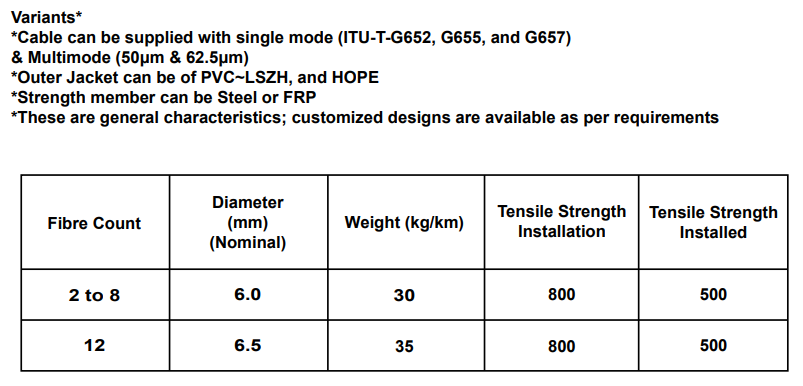

Specification

Tensile Force (IEC 60794-1-2-E1)

  • During Installation: 800 N
  • Installed: 500 N
  • Torsion Resistance (IEC 60794-1-2-E7) : 10 Cycle (± 360°) 5 Kg weight, L=1 Mtr
  • Crush Resistance (IEC 60794-1-2-E3) : 500 N (100 X 100 mm) for 60 sec
  • Kink Resistance (IEC 60794-1-2-E10) : 15D, D=Cable Diameter
  • Water Penetration (IEC 60794-1-2-F5B)  : 1 Mtr Water Head,3 Mtr Cable Sample, 24 Hours
